More Comfort
More returns

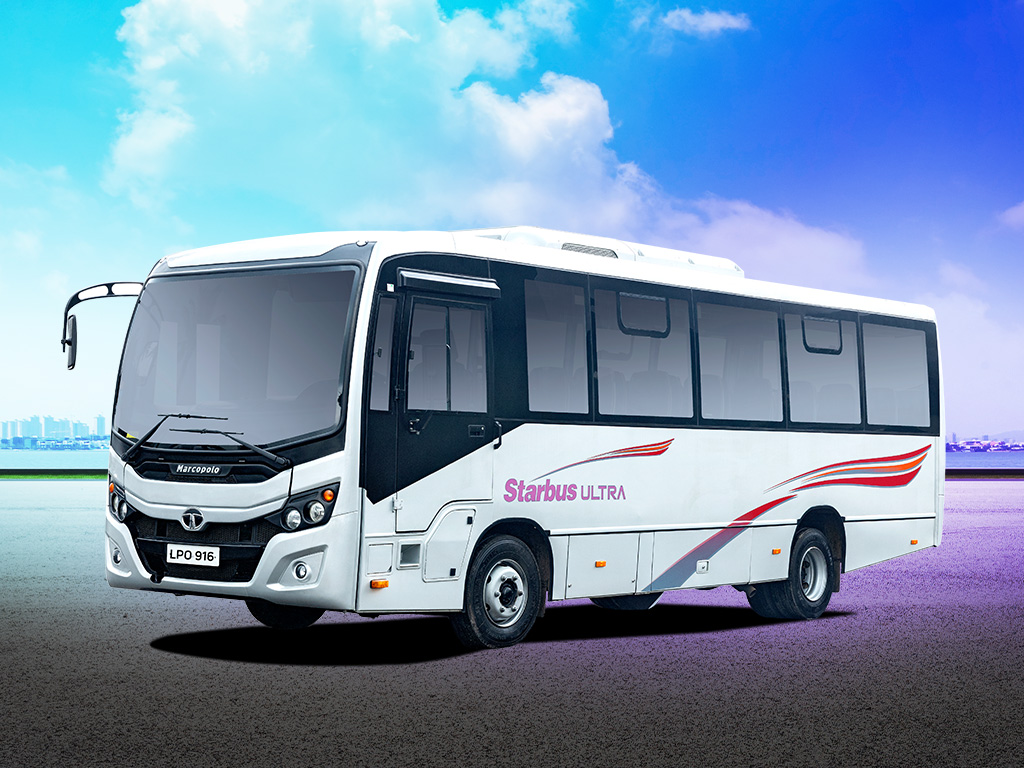

LPO 916 is a versatile and efficient bus designed to cater to a wide range of passenger transport needs. With a strong core and a fuel-efficient engine, this bus is a great choice for a variety of applications including school bus, employee commute, and even a tour bus.

More Comfort
More returns

LPO 916 is a versatile and efficient bus designed to cater to a wide range of passenger transport needs. With a strong core and a fuel-efficient engine, this bus is a great choice for a variety of applications including school bus, employee commute, and even a tour bus.

Move ahead with the power to do more

  • <p>Emission Standard Compliant</p>

    Euro IV

    Emission Standard Compliant

  • <p>Torque at 1350-1800 rpm</p>

    550 Nm

    Torque at 1350-1800 rpm

  • <p>Robust 697 TCIC BS-IV</p>

    Engine

    Robust 697 TCIC BS-IV

LPO 916
LPO 916

LPO 916

LPO 916 ensures optimum performance with an amazing maximum output of 160 HP and a maximum torque of 550 Nm at 1350-1800 rpm.  The reliable gearbox is perfect for seamless transmission duties, while its Weveller suspensions ensure a safe and smooth ride for passengers. With the presence of Air Brakes, safety is guaranteed in every journey.

Redefine profits in Staff/ School transport with the high-performance LPO 916 bus.

  • 37% Max gradeability
  • G600 OD 6F+1R Gearbox
  • Powerful 697 TCIC BS-IV Engine

Redefine profits in public transport with the high-performance LPO 916 bus.

Contact Us

Features designed for performance and profits

High Engine Power of 160 Hp

Advantage

Top power achieved at lower rpm. This is useful for:
- Better drivability
- Better fuel efficiency
- Top power at lower rpm ensure better engine life

Benefit

Optimum power output even at lower RPMs from the reliable Engine

High Engine Torque of 550 Nm

Advantage

High torque achieved at lower rpm. This is useful for:
- Better drivability and overtaking in traffic
- More number of trips
- Better fuel efficiency
- High Torque at lower rpm ensure better engine life

Benefit

Higher torque at lesser RPM ensure higher pulling power & pickup

Clutch

Advantage

Bigger clutch plate is useful for:
- Better torque transmission for better drivability
- Longer clutch life while leads to lower operating costs

Benefit

Bigger clutch plate ensure better torque transmission for better drivability to and better clutch life

GearBox

Advantage

Higher first gear ratio useful for:
- Better pickup from standstill
- Better drivability in traffic

Benefit

Higher first gear ratio ensures better torque during pickup from standstill

Suspension

Advantage

Weveller suspensions ensures smoother & comfortable ride for the passengers

Benefit

Suspension defines the ride comfort and durability to customer

Brakes

Advantage

More safety to passenger even in slippery road conditions
- Enhanced brake life

Benefit

Better Braking efficiency

01
LPO 916

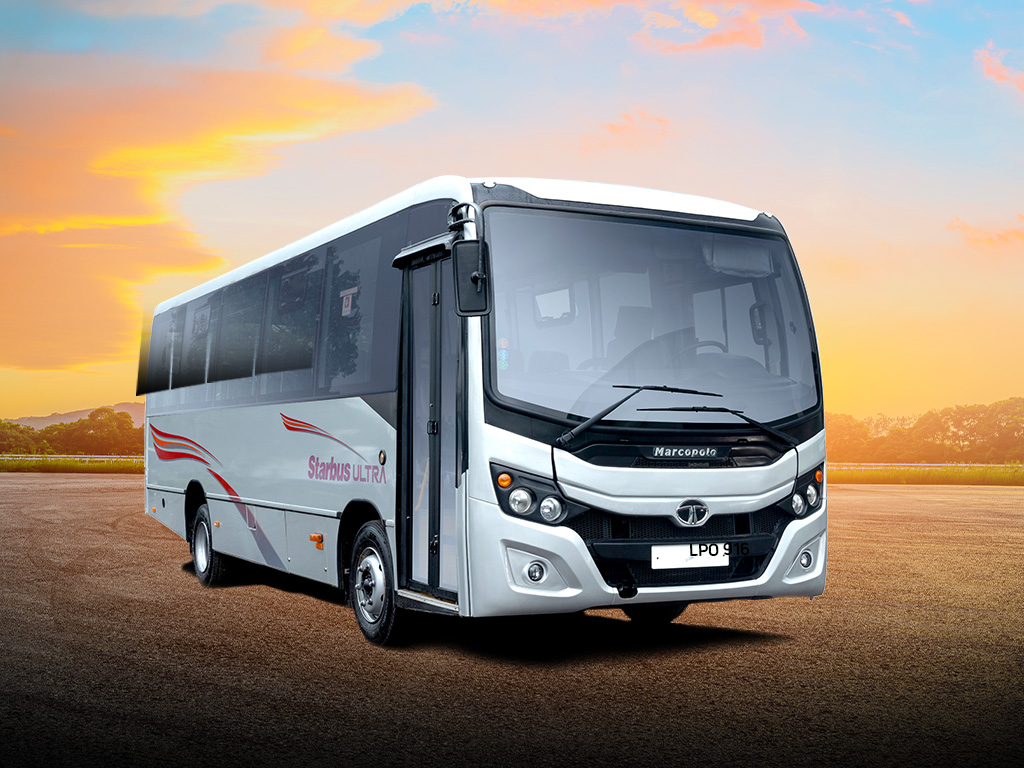

LPO 916 specifications

  • Engine

    697 TCIC BS-IV

  • Engine Capacity

    5675cc

  • Engine Power

    160 Ps @ 2400 rpm

  • No of Cylinders

    6

  • Max Speed

    103 KMPH

  • Emission

    Euro 4

  • Torque

    550Nm@1350-1800 rpm

  • Gradeability

    37%

  • Transmission Model

    TATA G 600 OD`

  • No of Gears

    6F+1R

  • Gear Box

    G600 OD

  • FGR

    6.58

  • Clutch

    Single plate dry friction type

  • Clutch Lining Outside Diameter

    352

  • Steering System

    Power Steering

  • Brakes

    Dual circuit full air S-cam brake with Anti-lock Braking System

  • Suspension

    Parabolic Leaf spring at Front and Rear

  • Shock absorber

    Hydraulic double acting telescopic type at F & R

  • Antiroll Bar

    AT FRONT & REAR

  • No of Tyres

    7

  • Tyre Size

    235/75 R17.5

  • No of Wheels

    7

  • Wheel Rims

    6.75 X 17.5

  • Axle - Front

    Forged I beam, reversed Elliot type

  • Axle - Rear

    Banjo Axle

  • Axle Final ratio

    4.42

  • Length

    8173

  • Width

    2380

  • Height

    2540

  • Wheelbase

    4200

  • Ground Clearance

    187 mm

  • Track Front

    1985 mm

  • Track Rear

    1730 mm

  • Angle of Departure

    11 Degrees

  • Length

    8560

  • Width

    2340

  • Height

    3130

  • GVW

    9600

  • Max Permissible FAW

    3891

  • Max Permissible RAW

    5709

  • Fuel Tank Capacity

    120
