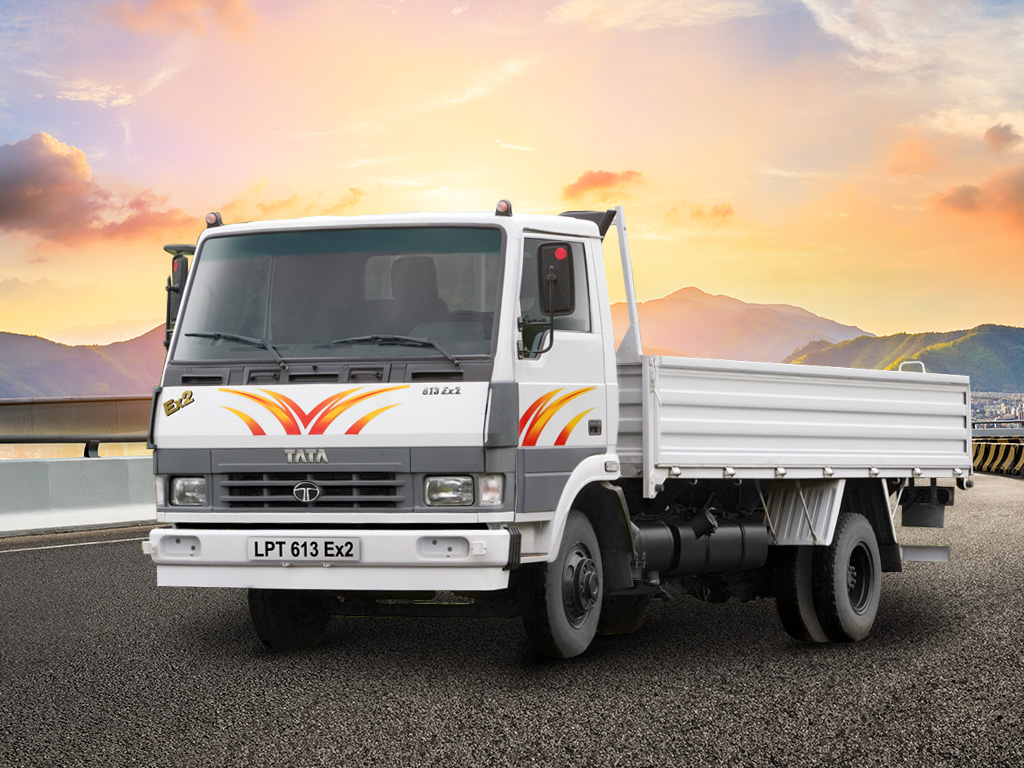

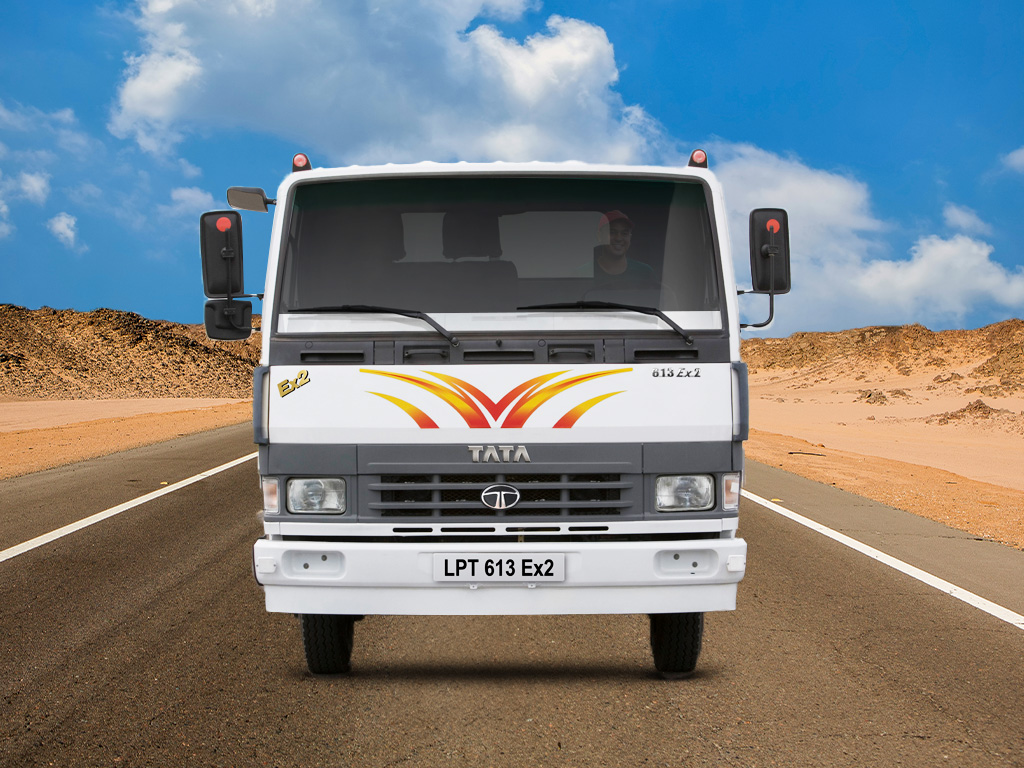

LPT 613 specifications

• Engine

  TATA 697 TCIC

• Engine Type

  Water-cooled direct injection diesel engine with inter-cooler

• Body Type

  Cab-Chassis

• Engine Capacity

  5675 cc

• Max Engine Output

  130 Ps@ 2400rpm

• No of Cylinders

  6 INLINE

• Cylinders / Displacement

  6 cylinder, 5675 cc

• Max Speed

  112 kmph

• Emission

  Euro II

• Torque

  430 Nm @ 1350-1800 rpm

• Transmission Model

  Manual

• No of Gears

  5 Forward +1 Reverse

• Gear Box

  GBS 40 synchromesh

• FGR

  6.34

• Clutch

  Single plate dry friction type, booster assisted

• Clutch Lining Outside Diameter

  310 mm

• Steering System

  Integrated Hydraulic Power

• Brakes

  Dual circuit full air S-Cam brakes

• Brake - Front

  Drum

• Brake - Rear

  Drum

• Brake Drum Diameter

  325 mm

• Suspension

  Semi elliptical multi leaf spring at front and rear with auxilary springs at rear only

• Suspension - Front

  Semi elliptical leaf spring

• Suspension - Rear

  Semi elliptical leaf spring with auxilary springs

• Antiroll Bar

  YES

• No of Tyres

  Front: 2, Rear:4 and Spare: 1

• Tyre Size

  7.50R16 14PR Radial ply

• Wheel Rims

  6.00 G x 16 SDC

• Size & Ply rating

  7.50R16 14PR Radial ply

• Axle - Front

  Heavy duty forged I beam

• Axle - Rear

  Single reduction, hypoid gear

• Axle Final ratio

  3.111:1

• Frame

  Ladder type frame with rivetted/bolted cross members Side members are of channel section

• Frame Depth

  200

• Frame Width

  60

• Length

  6243

• Width

  2155

• Height

  2341

• Wheelbase

  3400

• Over Hang - Front

  1275

• Turning Circle Radius

  6.15 mm

• Turning Clearance Circle Diameter

  14

• Track Front

  1650

• Track Rear

  1577

• GVW

  7500

• Kerb Weight

  3060

• Max Permissible FAW

  2800

• Max Permissible RAW

  4700

• Fuel Tank Capacity

  90

• Cabin

  LPT Face

• Cabin Ventilation

  N.A

• Battery

  12 V, 180 Ah

• Vehicle Drive

  LHD

• Alternator

  65 Amps

• Seats

  D+2
