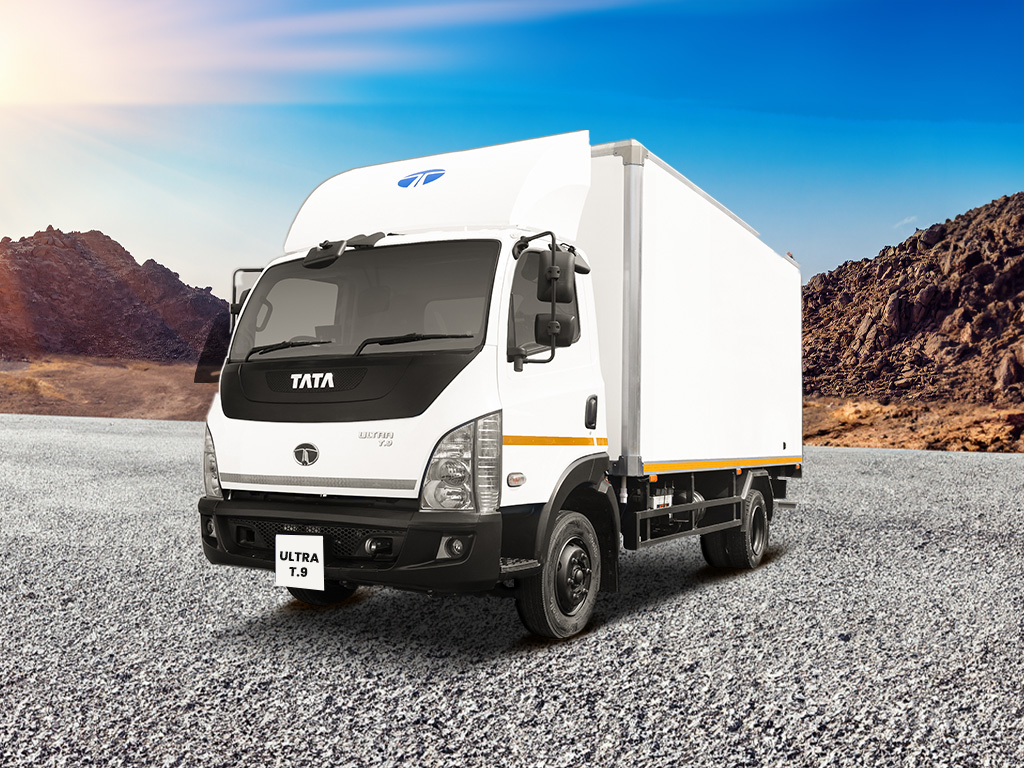

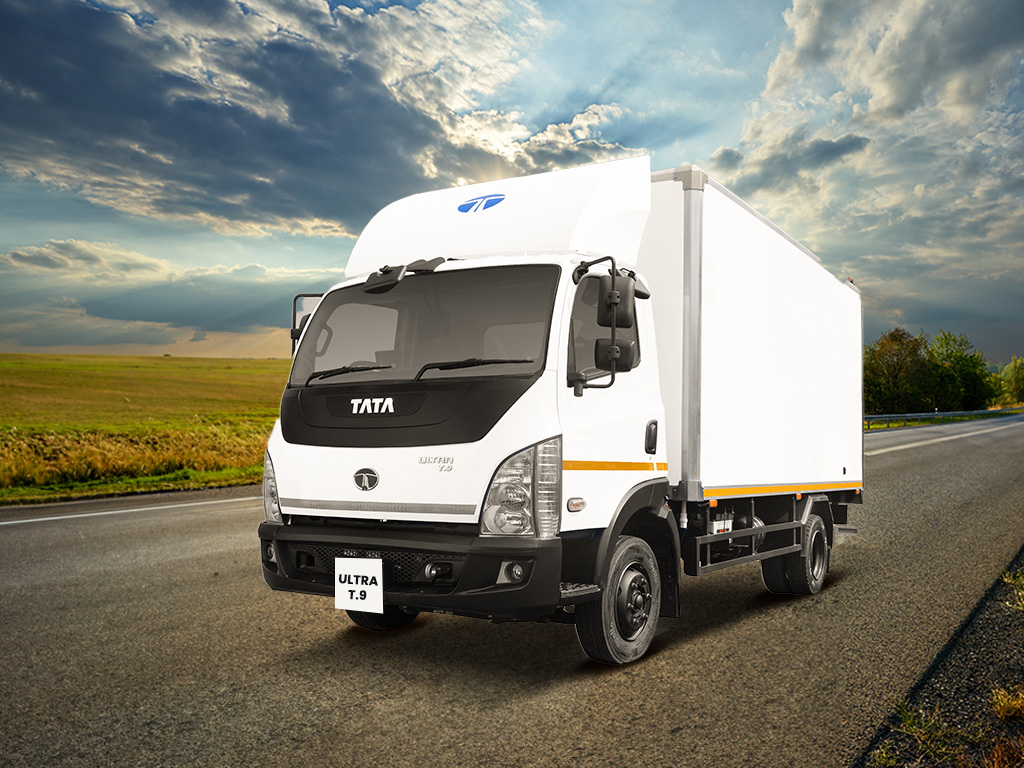

ULTRA T.9 specifications

• Engine

  NG3.3L CR EIV

• Engine Type

  EURO- 4

• Body Type

  Cab-Chassis

• Engine Capacity

  3300 cc

• Max Engine Output

  155 Ps @ 2600 rpm

• No of Cylinders

  4 INLINE

• Cylinders / Displacement

  4 cylinder, 3300 cc

• Max Speed

  105 kmph

• Emission

  EuroIV

• Torque

  450 Nm at 1500-2200 rpm

• Gradeability

  37%

• Grade Restartability

  31.31%

• Transmission Model

  Manual

• No of Gears

  6 Forward +1 Reverse

• Gear Box

  Tata G550 Synchromesh

• FGR

  6.9

• Clutch

  Single plate dry friction type, booster assisted

• Clutch Lining Outside Diameter

  330 mm

• Steering System

  Integrated Hydraulic Power

• Brake - Front

  DRUM 325X120 mm

• Brake - Rear

  DRUM 325X120 mm

• Brake Drum Diameter

  325 mm

• Brakes

  Dual circuit full Air S-cam Brakes + ABS

• Suspension

  Parabolic and semi elliptical leaf spring

• Suspension - Front

  Parabolic Springs

• Suspension - Rear

  Semi elliptical leaf spring with auxilary springs

• Antiroll Bar

  YES

• No of Tyres

  Front: 2, Rear:4 and Spare: 1

• Tyre Size

  215/75R 17.5

• Size & Ply rating

  215/75R 17.5

• Axle - Front

  Heavy duty forged I beam

• Axle - Rear

  Tata RA-1055

• Axle Final ratio

  4.125

• Wheel Rims

  6.00 X 17.5

• Frame

  Ladder Type Straight Frame

• Frame Depth

  200

• Frame Width

  850

• Wheelbase

  3920

• Ground Clearance

  185.5

• Overall Length

  7058

• Overall Width

  2204

• Over Hang - Front

  1180

• Over Hang - Rear

  1863

• Turning Circle Diameter

  6.45 mm

• Turning Clearance Circle Diameter

  14.8

• Track Front

  1836

• Track Rear

  1684

• Angle of Departure

  10 deg

• GVW

  8990

• Kerb Weight

  3370

• Max Permissible FAW

  3327

• Max Permissible RAW

  5663

• Payload

  5620

• Fuel Tank Capacity

  120

• Cabin

  Ultra Wide Cabin

• Cabin Ventilation

  HVAC

• Battery

  12V  100AH

• Vehicle Drive

  LHD

• Alternator

  80 Amps

• Seats

  Driver : BUCKET TYPE + BENCH SEAT FOR 2 CO-PASSENGERS.
