Built for the Long Haul

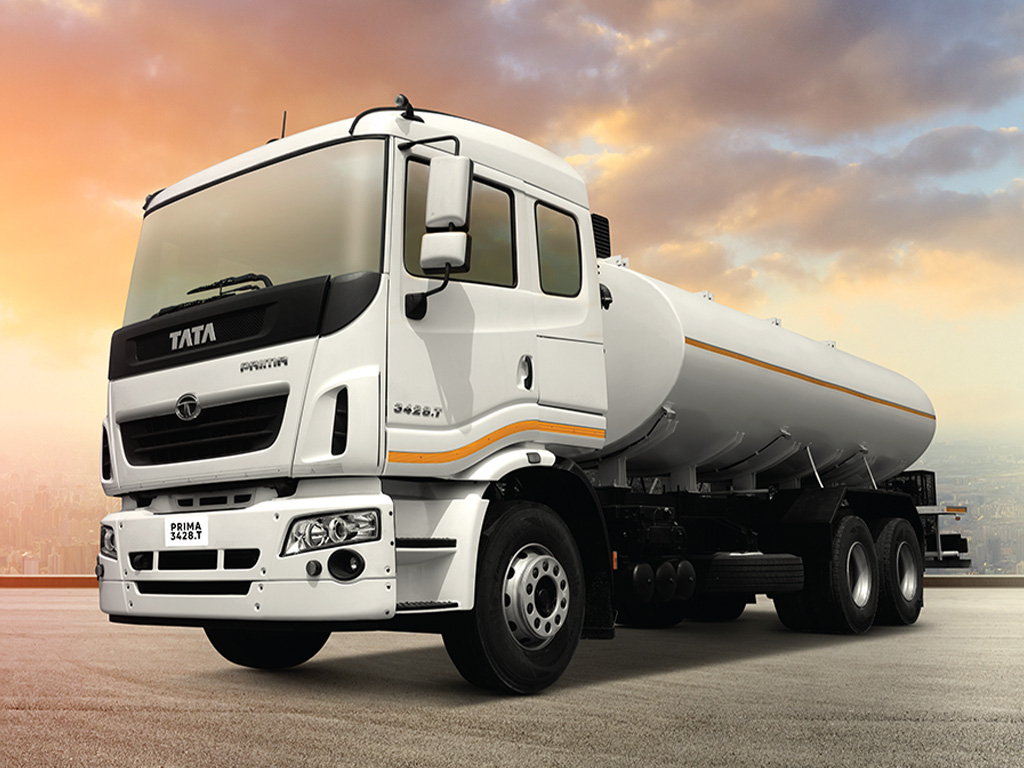

Drive profits in the world of heavy cargo transportation with the heavy-duty Tata Prima 3428.T truck. This truck will deliver unparalleled performance and reliability, making it the ultimate choice for all your transportation needs.

Built for the Long Haul

Drive profits in the world of heavy cargo transportation with the heavy-duty Tata Prima 3428.T truck. This truck will deliver unparalleled performance and reliability, making it the ultimate choice for all your transportation needs.

Move ahead with the power to do more

  • Tubeless Tyres

    315/80R22.5 -16

    Tubeless Tyres

  • <p>Maximum Gradeability</p>

    29 %

    Maximum Gradeability

  • <p>Maximum Torque</p>

    970 Nm

    Maximum Torque

PRIMA 3428.T
PRIMA 3428.T

PRIMA 3428.T

The heavy-duty Tata Motors Prima 3428.T truck is powered by the robust CUMMINS ISBe turbocharged and air-cooled diesel engine. It delivers a maximum power output of 267.53 BHP at 2500 rpm and a torque of 970 Nm at 1500 rpm. This truck is engineered to handle the most demanding cargo transportation tasks with remarkable power and efficiency.

  • Turbocharged & Air-Cooled Diesel Engine
  • 267.53 BHP Maximum Power
  • Hydraulic Power Steering
  • ZF, 9F + 1 R Gearbox

This truck provides the advantage of effortless gear shifts and smooth power transmission with the ZF 9F + 1 R gearbox, ensuring a seamless and responsive driving experience for the operator. A full-air dual-circuit S-cam braking system with ABS guarantees reliable and precise stopping power, offering enhanced control and safety during braking manoeuvres. At the front, the truck features a Parabolic Leaf Spring, ensuring excellent ride comfort and stability during operation. At the rear, the truck is equipped with a two-spring balance beam bogie with semi-elliptic multi-rubber mounted torque rods and a V-Rod, enhancing load-carrying capacity and minimizing vibrations.

Whether you're empowering the infrastructure industries or construction enterprises, with a maximum gradeability of 29%, the Prima 3428.T confidently tackles steep inclines and challenging terrains, making it a dependable choice for various heavy-duty transportation needs.

Contact Us

Features designed for
performance and profits

Flat Torque Curve

Advantage

Lesser Gear Shift

Benefit

Constant Torque for Wider RPM Range, High Fuel Economy

Reliable Agrregates e.g, Cummins Engine, ZF Gear Box

Advantage

World Class Technology

Benefit

Reliabiility

Better Grade Restartibility

Advantage

High Traction

Benefit

Suited for Tough Road conditions

Ergonomic World Class Prima Cabin with Bucket Type seats, Steel cab with rigid structure & 4 point mechanical cab suspension

Advantage

Lessers Jerks and Fatigue

Benefit

High Productivity, Longer trip durations without driver Fatigue


Availaibility of Service Parts

Advantage

Ease of Servicability

Benefit

High Uptime

Bogie Suspension

Advantage

Higher load carrying capacity

Benefit

Higher Profit & Improved Tyre & Axle life

01
PRIMA 3428.T

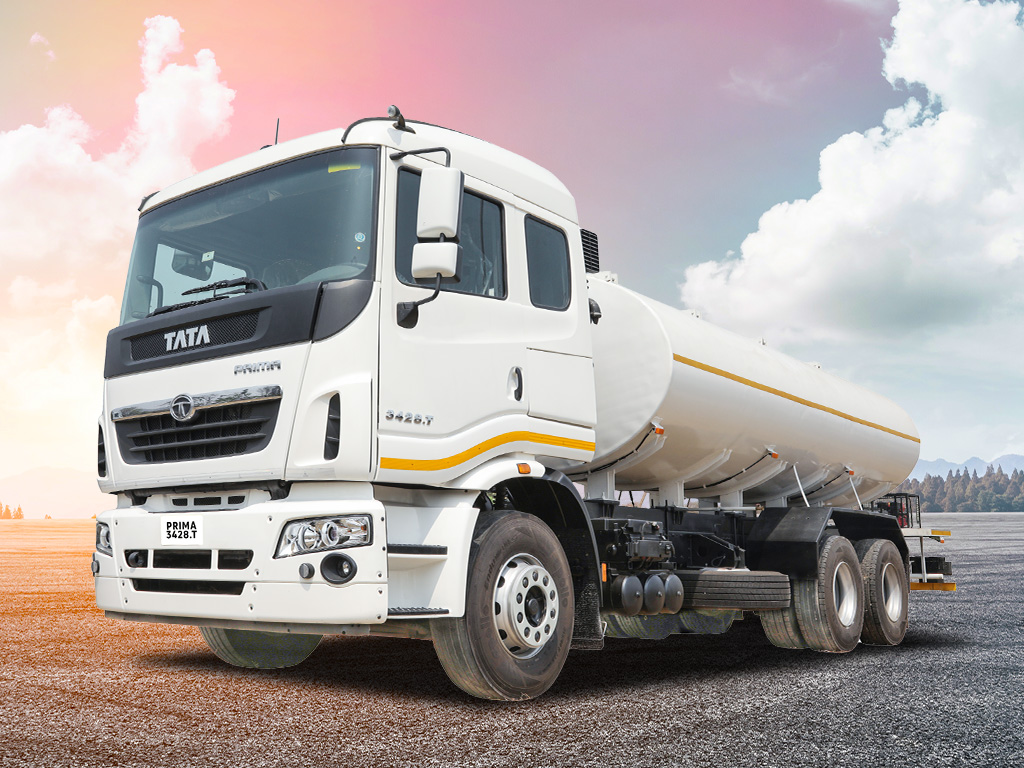

PRIMA 3428.T specifications

  • Engine

    CUMMINS ISBe 270 - Turbocharged & air cooled

  • Engine Capacity

    6692 cc

  • Max Engine Output

    267.53 BHP @ 2500 rpm

  • Max Speed

    110

  • Emission

    E-III

  • Torque

    970 Nm at 1500 rpm

  • Gradeability

    29%

  • Gear Box

    ZF, 9F + 1 R

  • Clutch

    430

  • Steering System

    Hydraulic Power Steering

  • Brakes

    Full Air Dual circuit - S Cam with ABS

  • Suspension - Front

    Parabolic leaf spring

  • Suspension - Rear

    Two spring balance beam Bogie with semi elliptic multi rubber Mounted Torque Rods & V-rod

  • Tyre Size

    315/80R22.5 -16

  • Length

    10382

  • Width

    2585

  • Height

    3320 mm

  • Wheelbase

    5550 mm

  • Ground Clearance

    204 mm

  • Turning Circle Diameter

    11414 mm

  • GVW

    28500 kg

  • Kerb Weight

    8950 kg

  • Max Permissible FAW

    7500

  • Max Permissible RAW

    21000

  • Fuel Tank Capacity

    365

  • Cabin Ventilation

    HVAC

Dealer locator

Choose your state, select your city and choose your preferred dealer type to find your closest showroom

7 results found

Mohamed Yousuf Naghi Motors Co

Mohamed Yousuf Naghi Motors
Al Harmain road, Al Rayan Dist.
Near Rahmania petrol station
Jeddah, Saudi Arabia

012 286 8956

Get Direction

Mohamed Yousuf Naghi Motors Co

MY Naghi Motors
Manahil International
Exit 18
Near Alissa Isuzu showroom
Faisaliya Riyadh

011 511 6152

Get Direction

Mohamed Yousuf Naghi Motors Co

MY Naghi Motors
Manahil International
Dammam -Industrial Area
Opp. Khodariya – AL Faihaa Street -Dallah
Near- Al Bakhit Equipement
Dahran /Jubail Highway

541215164

Get Direction

Mohamed Yousuf Naghi Motors Co

MY Naghi Motors
Manahil International
Al Matar Al Qadim,
Buraydah 52367

506812458

Get Direction

Mohamed Yousuf Naghi Motors Co

42393 Al-Hijra Road,
Al-Hilifa, Medina

594713713

Get Direction

Mohamed Yousuf Naghi Motors Co

MY Naghi Motors
Manahil International
Khamis – Abha Road
Signal Bahesh – Khamis

0549606946

Get Direction

Mohamed Yousuf Naghi Motors Co

MY Naghi Motors
Manahil International
Madinah Munawara road
Mohamed Yousuf Naghi
Near ISUZU Comp

508486845

Get Direction

Mohamed Yousuf Naghi Motors Co

Mohamed Yousuf Naghi Motors Co
MY Naghi Motors
Manahil International
Exit 18
Near Alissa Isuzu showroom
Faisaliya Riyadh

Mohamed Yousuf Naghi Motors Co

Mohamed Yousuf Naghi Motors Co
MY Naghi Motors
Manahil International
Dammam -Industrial Area
Opp. Khodariya – AL Faihaa Street -Dallah
Near- Al Bakhit Equipement
Dahran /Jubail Highway

Mohamed Yousuf Naghi Motors Co

Mohamed Yousuf Naghi Motors Co
MY Naghi Motors
Manahil International
Al Matar Al Qadim,
Buraydah 52367

Mohamed Yousuf Naghi Motors Co

Mohamed Yousuf Naghi Motors Co
42393 Al-Hijra Road,
Al-Hilifa, Medina

Mohamed Yousuf Naghi Motors Co

Mohamed Yousuf Naghi Motors Co
MY Naghi Motors
Manahil International
Khamis – Abha Road
Signal Bahesh – Khamis

Mohamed Yousuf Naghi Motors Co

Mohamed Yousuf Naghi Motors Co
MY Naghi Motors
Manahil International
Madinah Munawara road
Mohamed Yousuf Naghi
Near ISUZU Comp

Mohamed Yousuf Naghi Motors Co

Mohamed Yousuf Naghi Motors Co
Mohamed Yousuf Naghi Motors
Al Harmain road, Al Rayan Dist.
Near Rahmania petrol station
Jeddah, Saudi Arabia

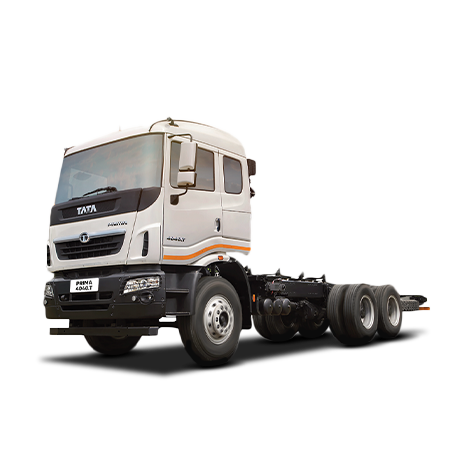

Similar products
