Move ahead with the power to do more
-
CUMMINS ISLe 375
Tubeless Tyres
-
37% / 54%
Maximum Gradeability
-
2100 Nm
Maximum Torque
-
8898 cc
Engine Capacity

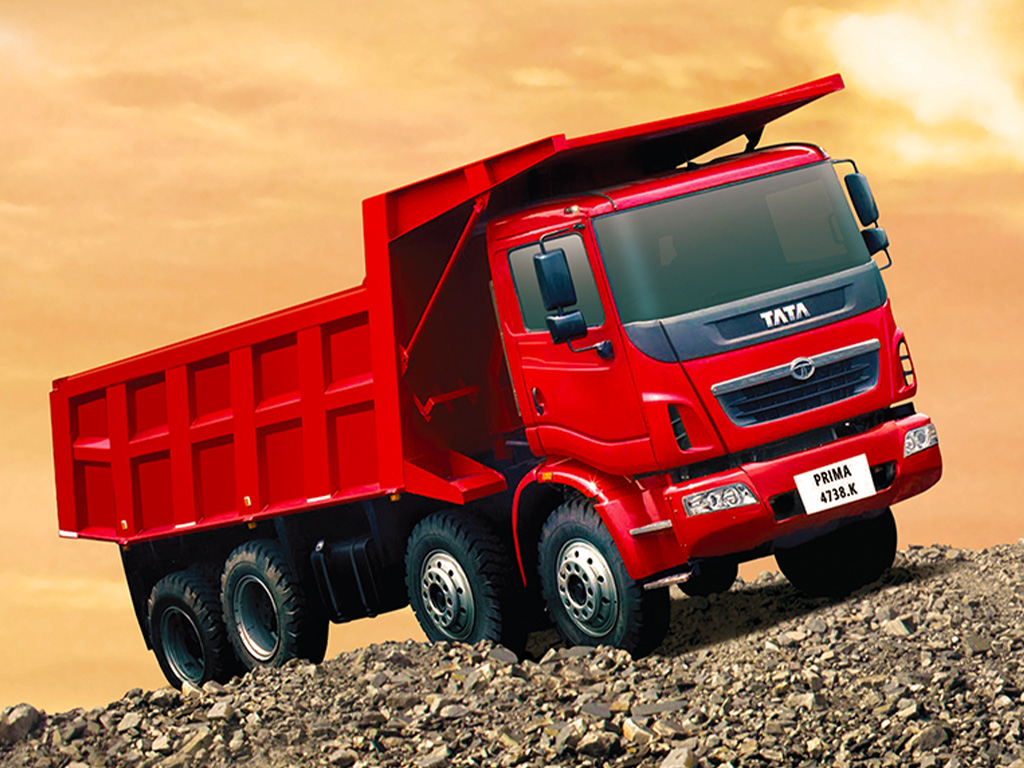

PRIMA 4738.K
The Tata Prima 4738.K is the epitome of power and performance. It comes equipped with the trusted CUMMINS ISLe, a water-cooled, direct-injection, turbocharged, after-cooled diesel engine with a viscous fan. This heavy-duty tipper delivers a maximum power output of 370 HP at 2100 rpm and a peak torque of 1550 Nm.
With the smooth and reliable Eaton 8F + 1 C + 1 R gearbox, gear transitions are seamless, ensuring a comfortable and responsive driving experience. It also has a full-air dual-circuit S-Cam braking system with ABS for precise and dependable braking performance in various road conditions. The suspension system is engineered for superior stability and comfort. The front features a Compensating Linkage Parabolic Spring, ensuring smooth rides and reduced vibrations during your journeys. The rear is equipped with a two-spring balance beam bogie, coupled with semi-elliptic multi-rubber mounted torque rods and a V-Rod, further enhancing load-carrying capacity and minimizing shocks.
- Water Cooled, Direct injection, Turbocharged After Cooled Diesel Engine With Viscous Fan
- 370 HP Maximum Power
- Full Air Dual circuit - S Cam Braking System with ABS
- Eaton 9F + 1 R Gearbox
This truck offers more savings over the long term with long-lasting aggregates that require little maintenance, making it an ideal choice for mining and RMC applications.
Features designed for performance and profits
01
PRIMA 4738.K specifications
Engine
CUMMINS ISLe 375- Water cooled, direct injection, turbocharged, after cooled Diesel engine with viscous fan
Engine Capacity
8898 cc
Max Engine Output
370 HP at 2100 rpm
Max Speed
66
Emission
E-III
Torque
1550 Nm at 1200-1400 rpm
Gradeability
49%(1st), 74% (Crawler)
Gear Box
Eaton, 8F + 1 C + 1 R
Clutch
430
Steering System
Hydraulic Power Steering
Brakes
Full Air Dual circuit - S Cam with ABS
Suspension - Front
Compensating linkage Parabolic spring
Suspension - Rear
Two spring balance beam Bogie with semi elliptic multi rubber Mounted Torque Rods & V-rod
Tyre Size
12R24
Length
8488
Width
2590
Height
3232 mm
Wheelbase
5250 mm
Ground Clearance
353 mm
Turning Circle Radius
11137 mm
GVW
36000 kg
Kerb Weight
11220
Max Permissible FAW
15000
Max Permissible RAW
21000
Fuel Tank Capacity
260 Ltrs
Cabin Ventilation
HVAC
Body Option
19 cum rock 25 cum box/29 cum box
